- Код товару: 1SDA062045R1
- Артикул: 1SDA062045R1
- Наявність: 3
49 681.44грн.
Знайшли дешевше?
Основні характеристики
Всі характеристики
Кількість полюсів::
3
Номінальна робоча напруга::
690 V AC
Номінальний безперервний струм (I u )::
1600 A
Тип клемного з'єднання::
Передний удлиненный вывод; Выключатели выкатного исполнения
1 Depth / Length::
380 мм

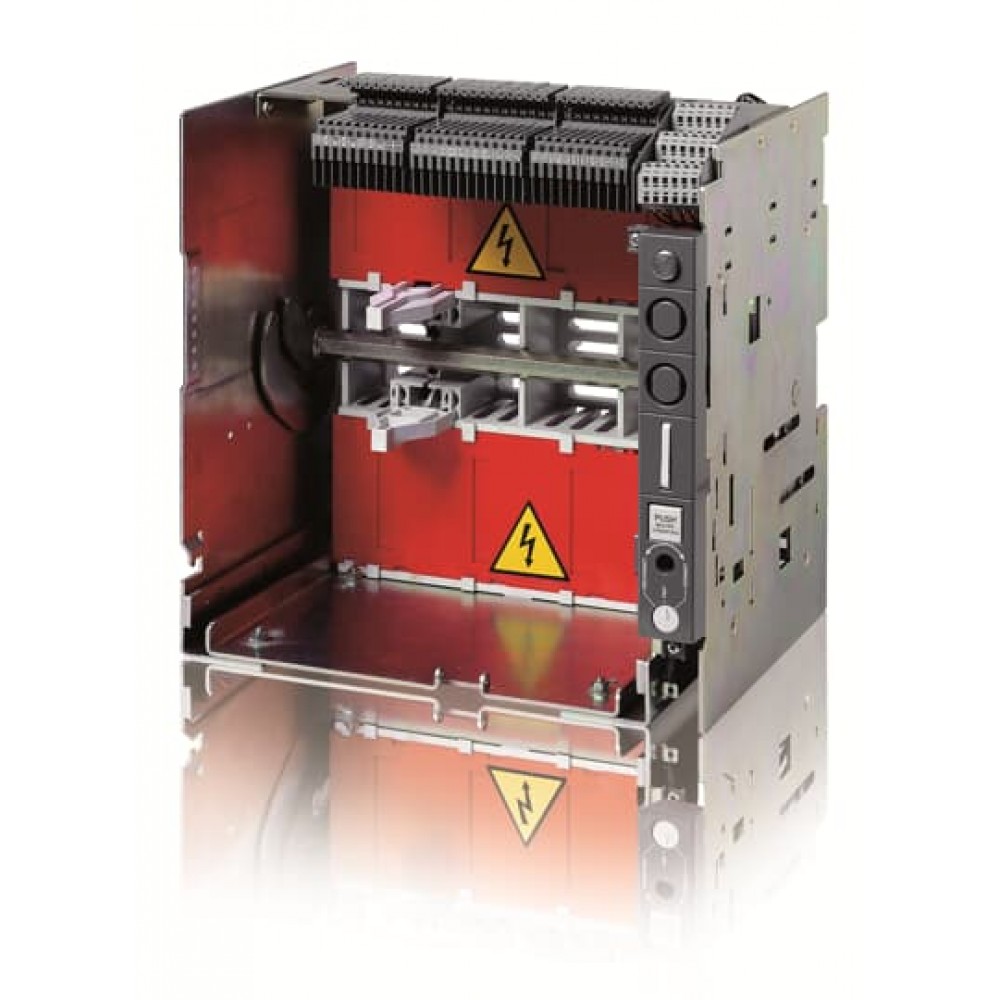

T7-X1 W FP 3p EF-EF ФІКСОВАНА ЧАСТИНА, Знята для C.BREAKER TMAX-EMAX ТРИ ПОЛЬС З РОЗШИРЕНИМИ ПЕРЕДНІМИ терміналами T7-X1
Характеристики
Характеристики
Кількість полюсів:
3
Номінальна робоча напруга:
690 V AC
Номінальний безперервний струм (I u ):
1600 A
Тип клемного з'єднання:
Передний удлиненный вывод; Выключатели выкатного исполнения
1 Depth / Length:
380 мм
1 EAN:
8015644609139
1 Gross Weight:
19.5 kg
1 Height:
340 мм
1 Units:
1 штука
1 Width:
360 мм
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Європейський товарний код (EAN):
8015644645830
Інструкції та керівництва:
1SDH000460R4259
версія:
W
Код класифікації об'єкта:
Q
Назва виробу:
Accessory
Номер митного тарифу:
85389099
Основний тип вироби:
SACE Tmax T
Підтип:
T7-X1
Тип виробу:
FP
Чиста вага виробу:
kg; 18
Чистий висота вироби:
343 мм
Чистий товщина вироби:
251 мм
Чистий ширина вироби:
278 мм
